ENK Hydro Project

  • Date of Steelwork Completion
    2022-12-01
Project Type
  • Mining/Industrial
  • Export / Pan African
Project Team Zoom Interview Case Study
Project Summary Case Study
Steel Profiles Used
  • Date of Steelwork Completion
    2022-12-01
  • Tonnage
    50
Metal Cladding and Roofing Overview
  • Date of Cladding Completion
    2023-09-01
  • Material Used
    Zincal® AZ 150, Grade G550 (Safal Steel)
  • Cladding Tonnage
    20
  • Cladding Area Coverage (m2)
    2200
Project Overview

Hydro Bridge: Channel bridge spanning 30m over valley. Not accessible for lifting equipment. All elements to be designed to be lifted and installed manually or with makeshift pulley systems.

Turbine Rotator: Rotator structure to assist with tilting turbine of 35T. Accuracy of holes etc. crucial

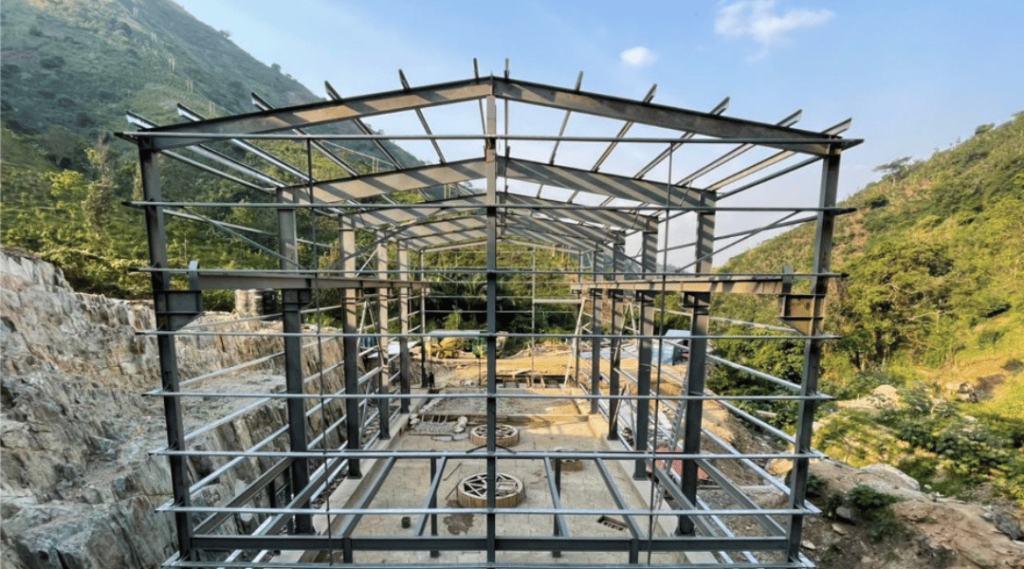

Hydro Plant: PEB design – basic portal frame design with 14.5m clear span. 35t overhead gantry at 10m. Frame designed to withstand crane loads. Mezzanine Floor for storage.

Channel Bridge: Bridge channel of 2x2x2m, spanning 30m over valley. Bridge supported by 2 sets of internal lattice
column structures. Steel bridge to concrete channel interface crucial.

Project Details
Very Remote Site: • Detailed logistical planning • Route planning Site Conditions: • Blasting of hard rock • Additional site security Lifting Equipment: • Design of smaller items with more bolted connections • Use of manual makeshift pulley systems Accuracy of Turbine Rotator: • Pre-assembly in shop • Crated and air freighted
Benefits of Steel in this Application

• Speed of construction of steel
• Easy of construction
• Environmentally friendly
• Span capabilities on Steel water channel
