Submitting Company (Non-SAISC Member)
A4 Advisory and Consulting
Project Team Interview Case Study
Project Overview

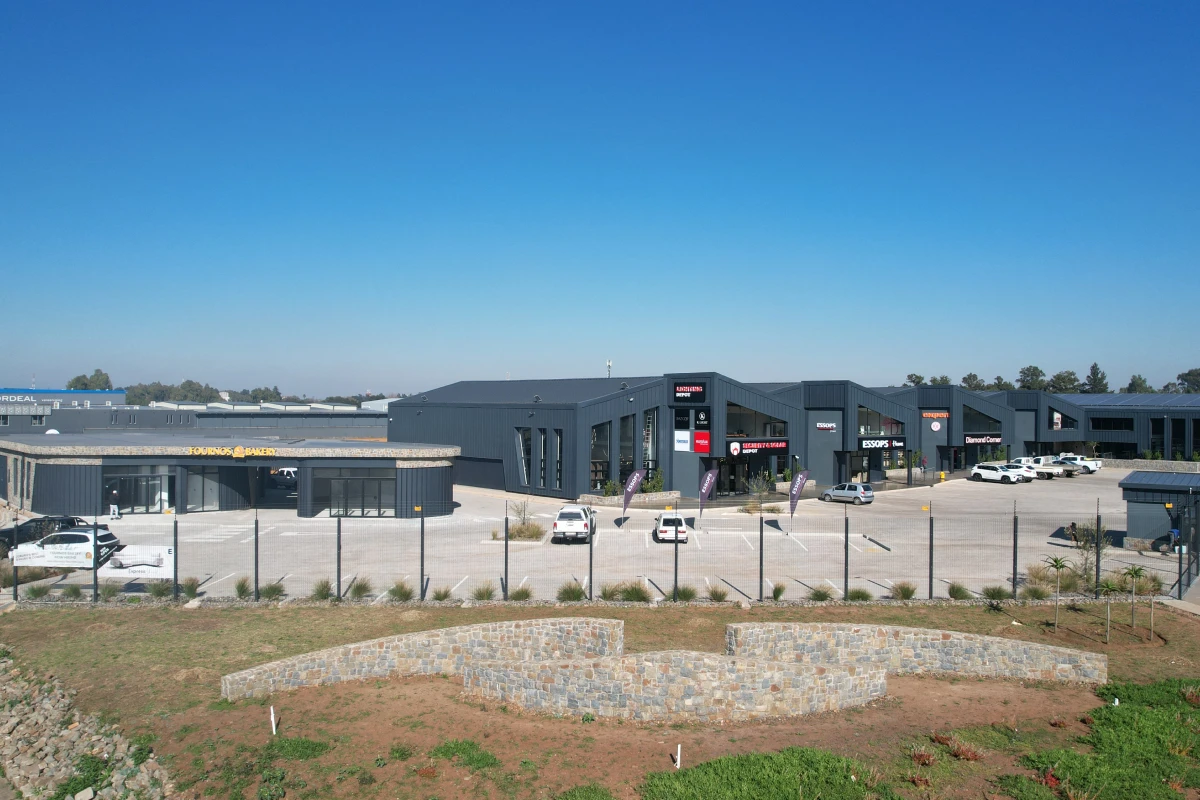

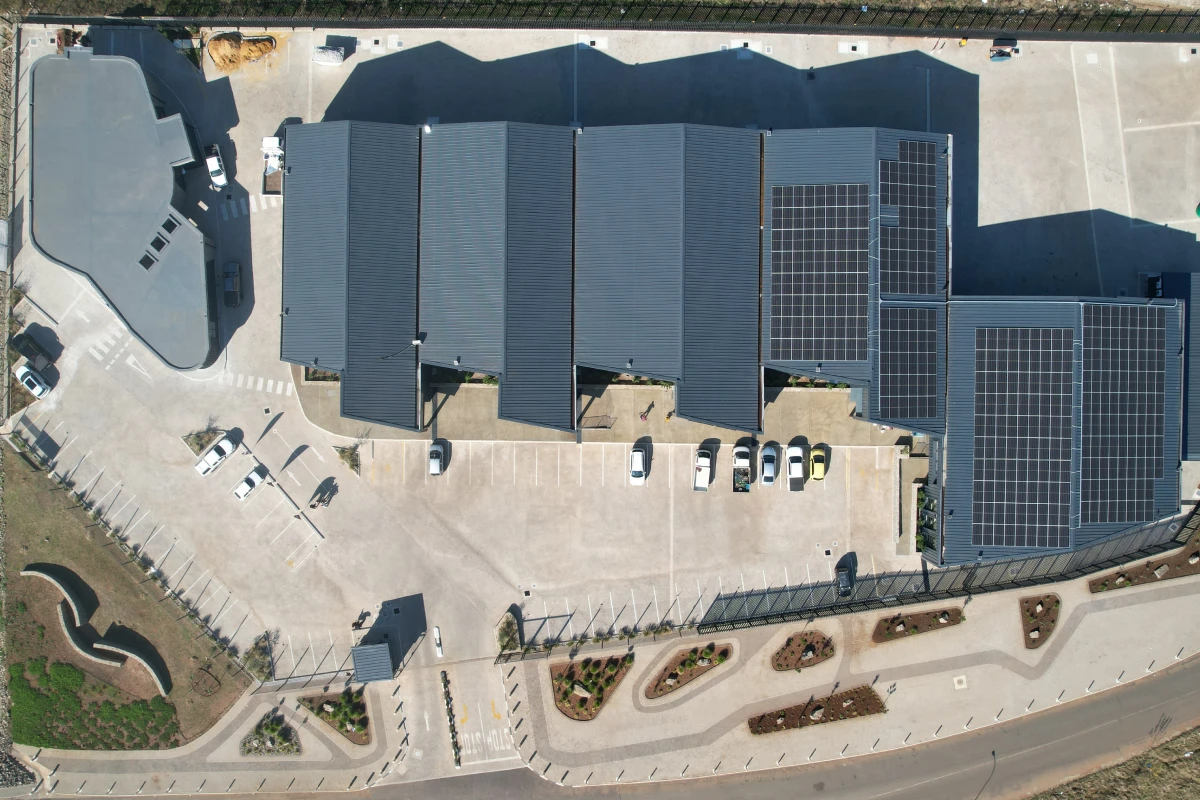

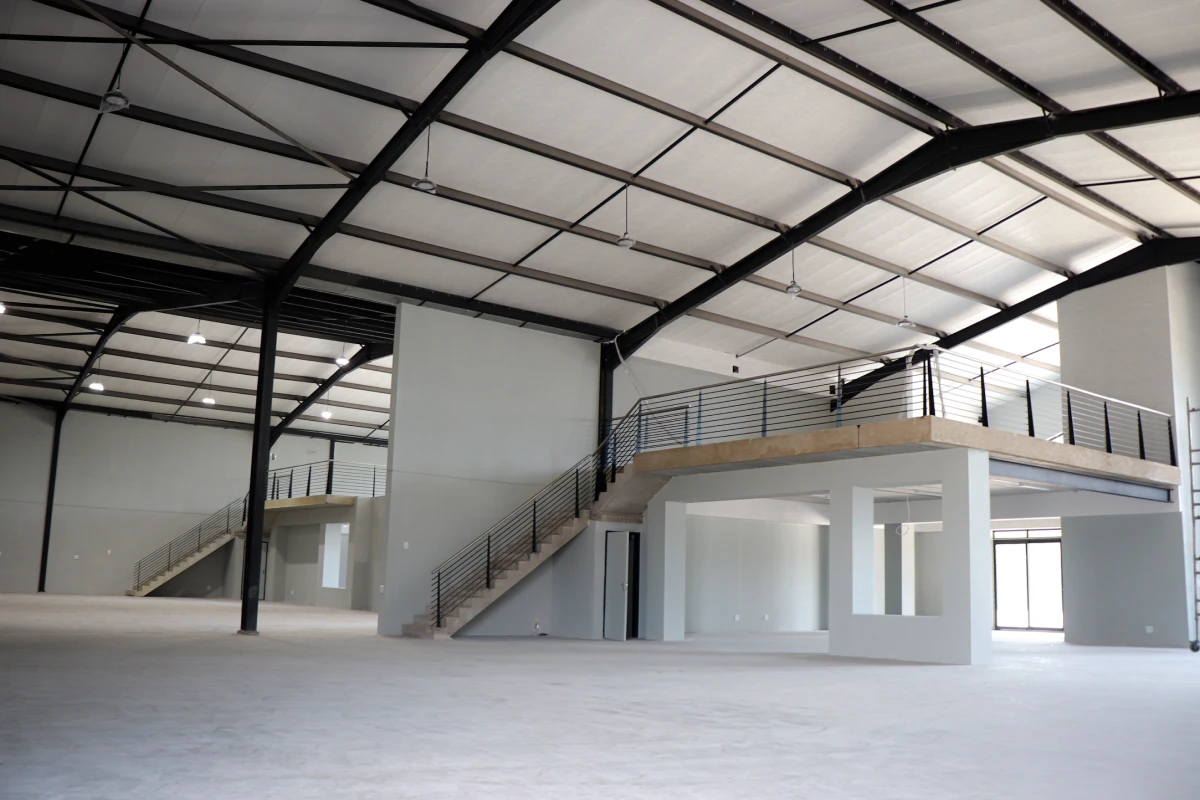

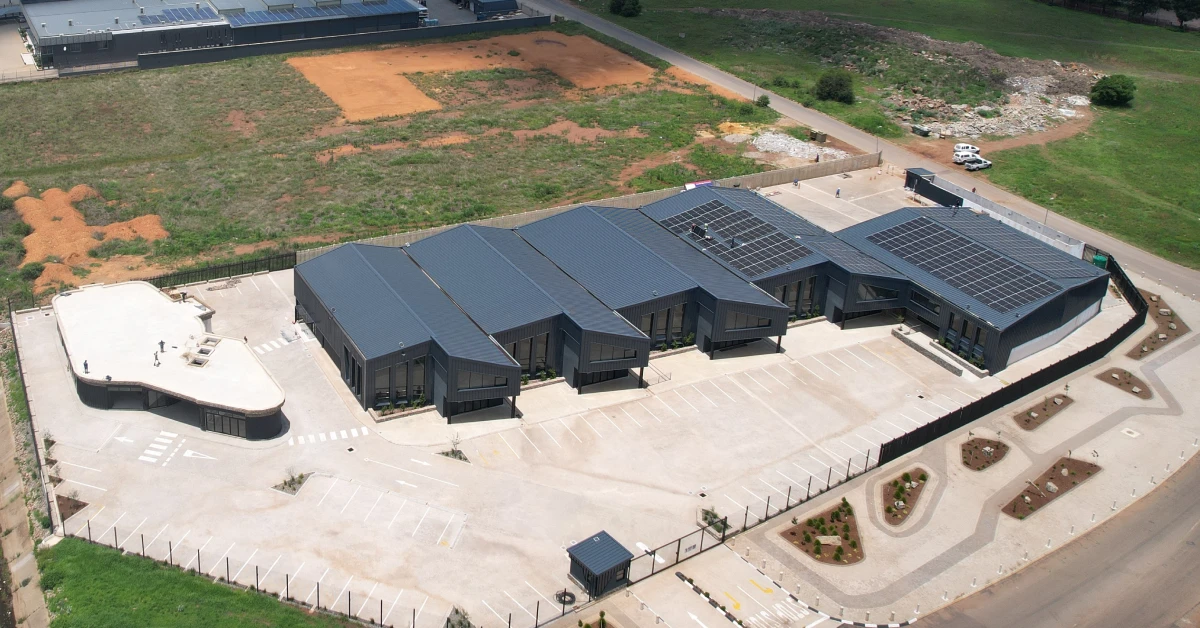

The Vaal Lifestyle Centre is a commercially viable mixed-use precinct located in Duncanville, Vereeniging, near the R59 freeway. Developed by A4 Advisory, the project combines warehouses, showrooms, offices, and light industrial units in an integrated architectural response to diverse operational needs. The design philosophy was rooted in innovation, environmental responsibility, and connection to the area’s industrial heritage. A modular steel portal frame system was adopted as the primary structural and architectural solution, delivering large column-free internal spans, design flexibility, and a strong visual identity. Repetitive gable roof forms create rhythm and scale across the site, while the deliberately expressed steel structure becomes a defining architectural element. The hybrid structural system incorporates 406x178x60 I-section primary beams, 254 I-section secondary beams, and 152 universal columns pinned at bases, combined with 250mm precast hollow-core slabs for the mezzanine floors. Total structural steelwork tonnage was 99 tons. The development was designed and constructed on dolomite-classified ground (D4), requiring careful geotechnical management and foundation optimisation throughout.
Steel Profiles Used
-
Date of Steelwork Completion2025-01-01
-
Tonnage99
-
Hot Rolled Structural SectionsIPE Sections, Universal Columns, I-Sections
-
Cold Formed Structural SectionsCold-Formed Lipped Channels (CFLC)

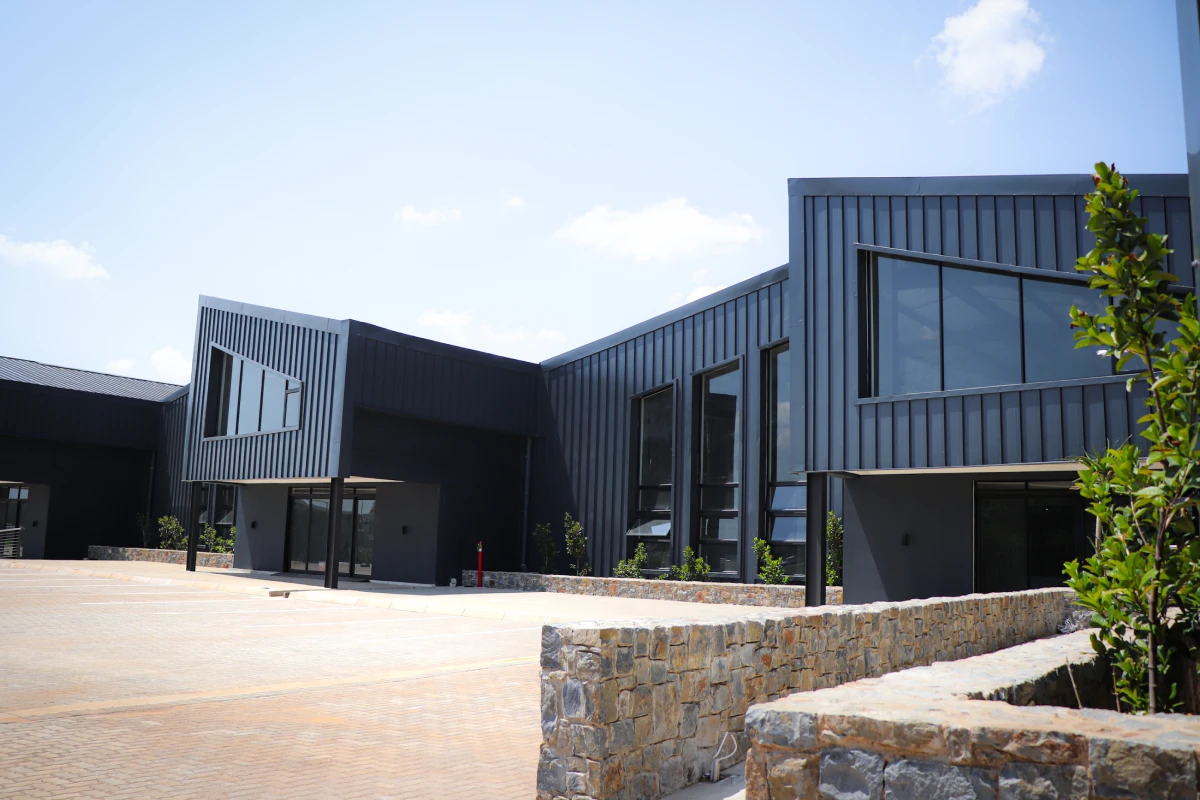

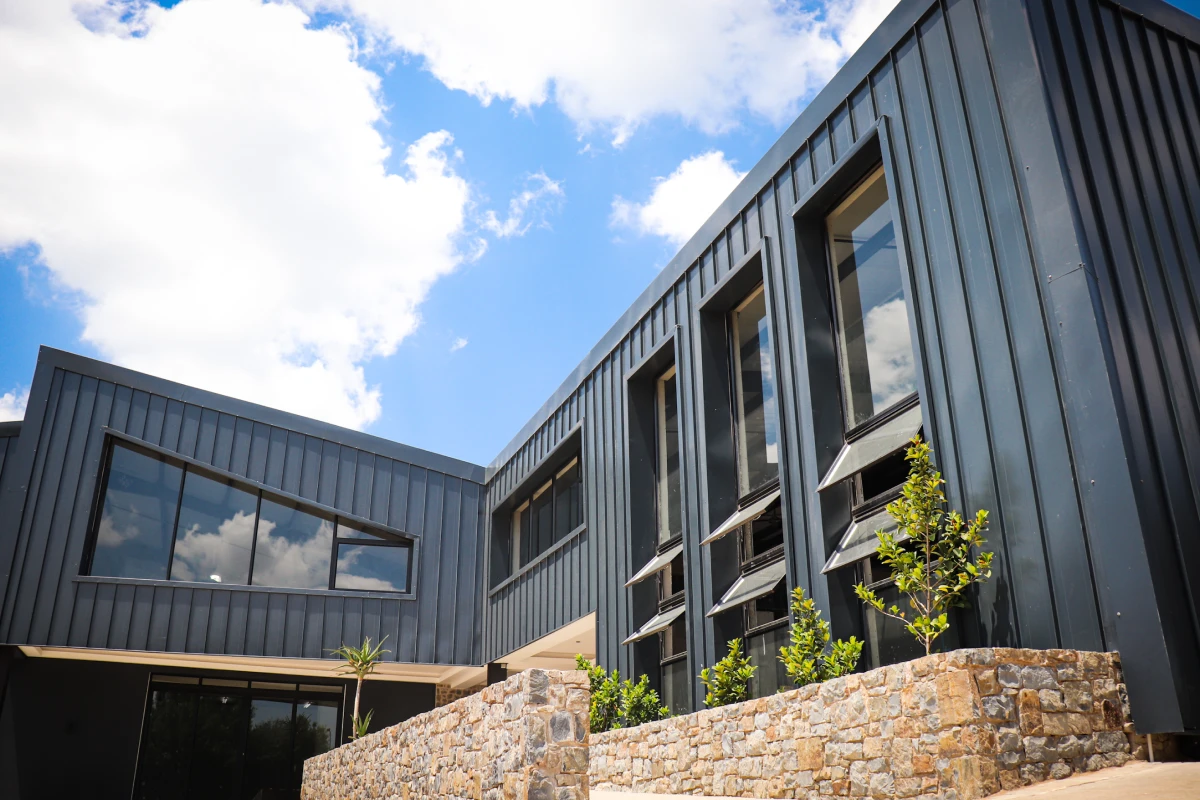

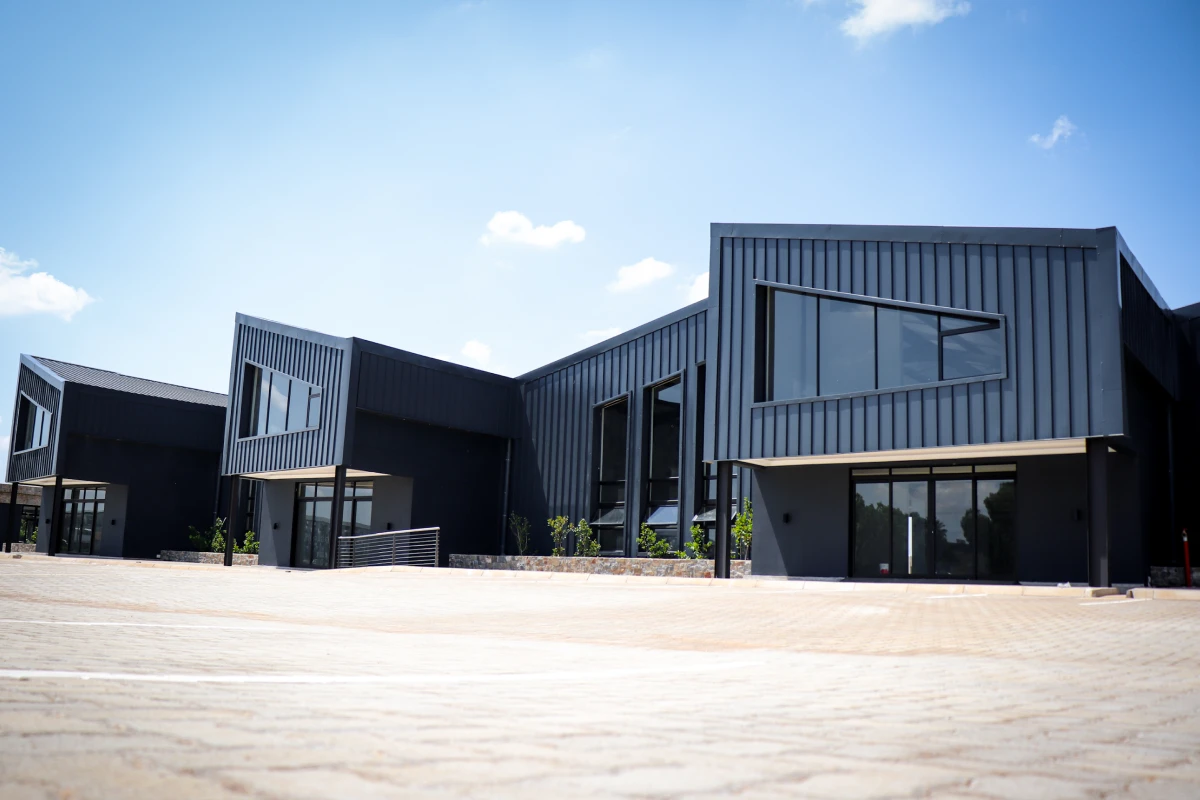

Metal Cladding and Roofing Overview
-
Date of Cladding Completion2025-07-01
-
Material UsedKeplock Concealed Fix Profile
-
Cladding ProfileKeplock Concealed Fix
-
Cladding Tonnage6
-
Cladding Area Coverage (m2)1180
Project Details
All steel was pre-fabricated off-site at the supplier’s workshop. End plates were welded to rafters prior to delivery, enabling rapid and precise on-site assembly. The repetitive nature of the portal frame geometry allowed for highly efficient fabrication, with consistent member sizes and connection details throughout. Factory-manufactured components provided high levels of quality control and tight construction tolerances. Material certificates were issued for all steel and cross-checked against design specifications prior to delivery. All paint systems applied during fabrication conformed to relevant standards and were verified as part of the quality assurance process. The BIM-coordinated design model, developed in Autodesk Revit and federated in Navisworks, ensured that fabrication drawings were accurate and clash-free before production commenced, eliminating rework and supporting the fast erection programme on site.

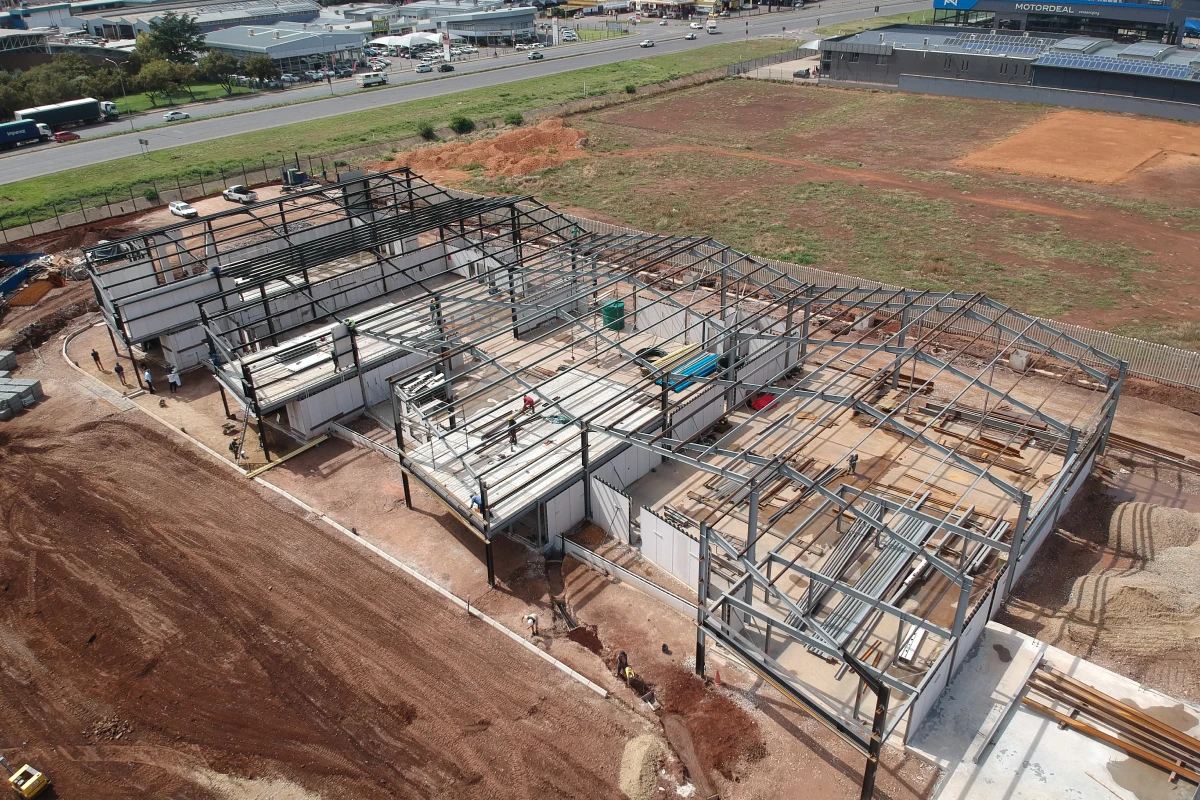

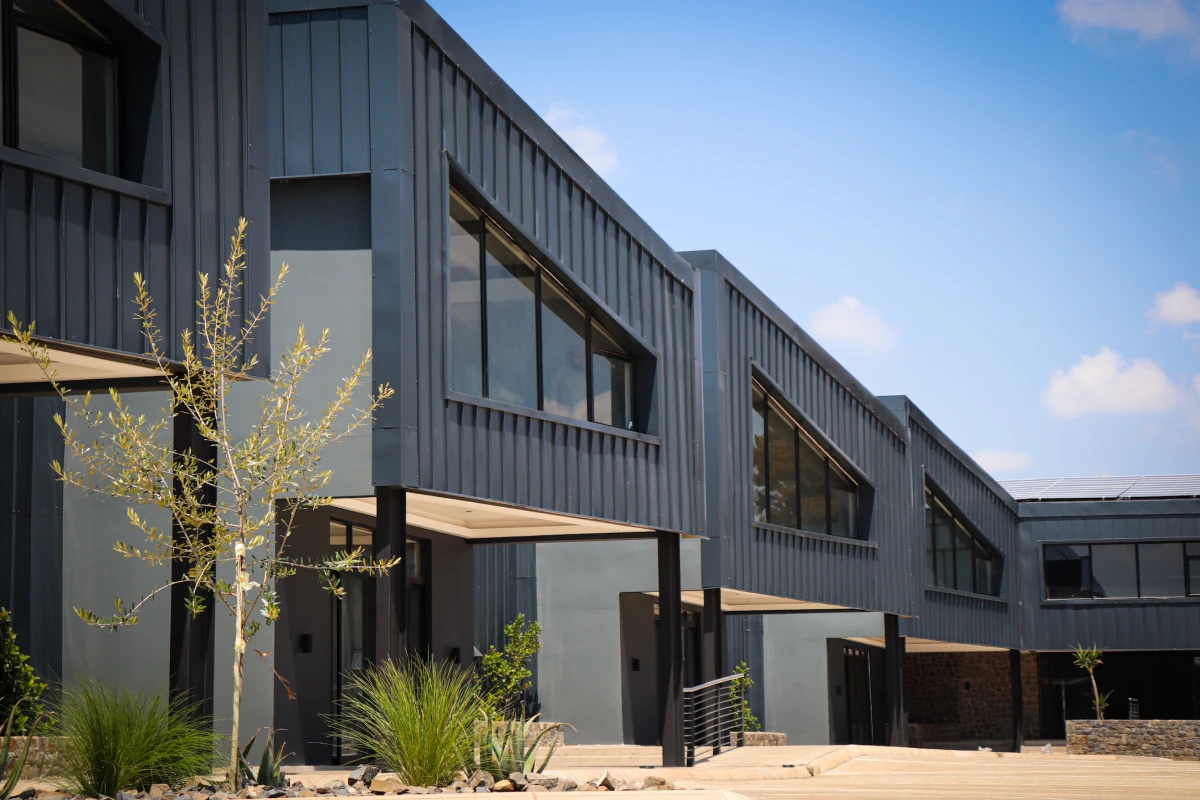

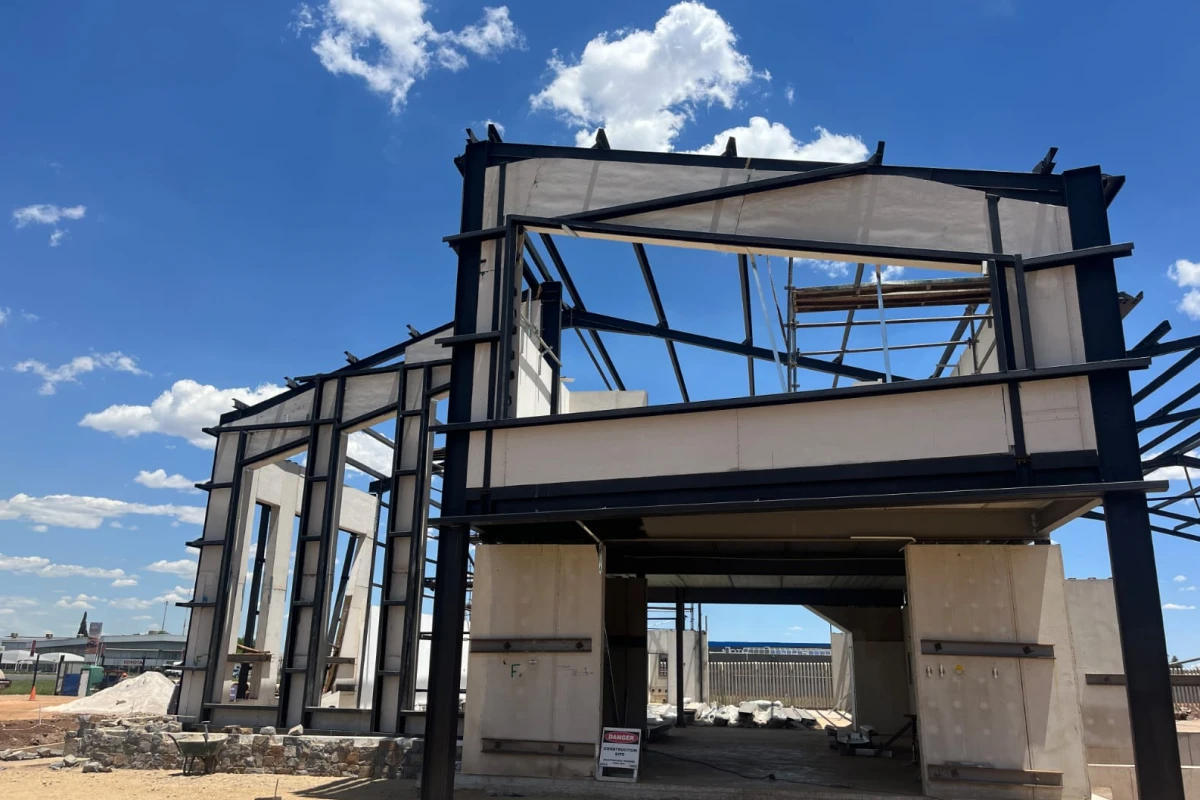

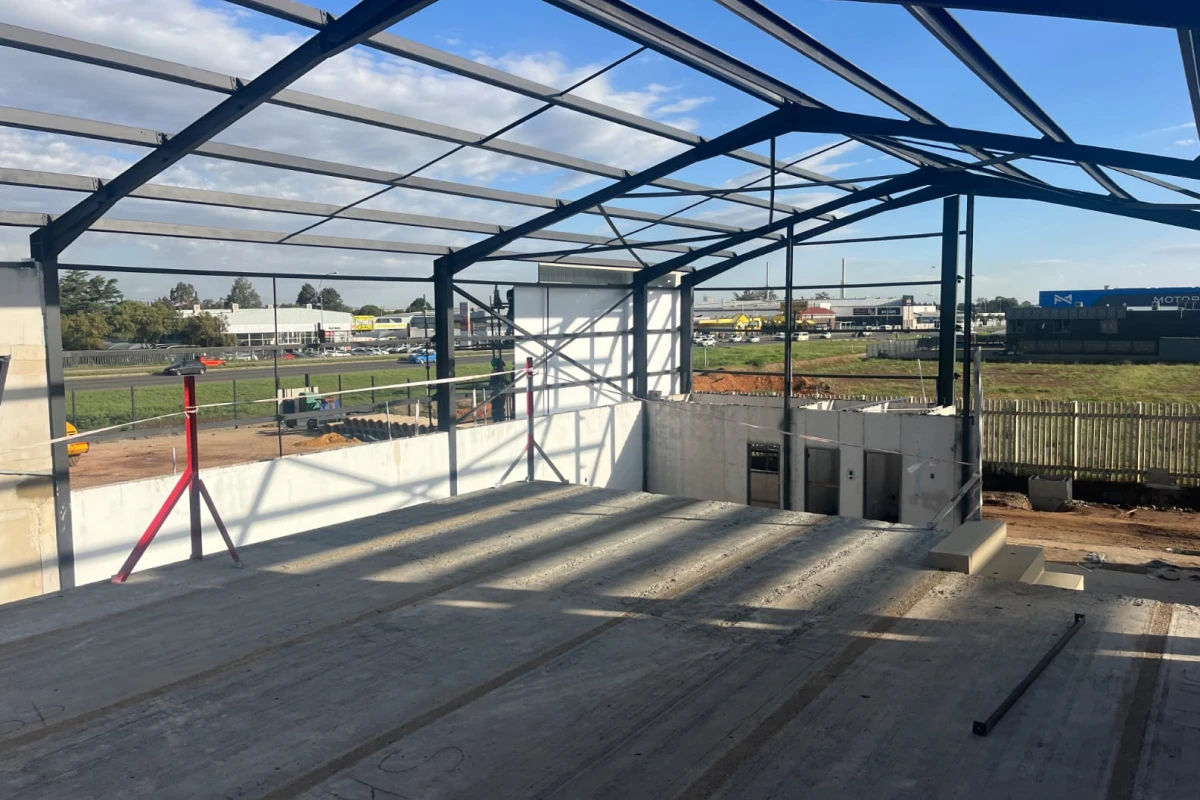

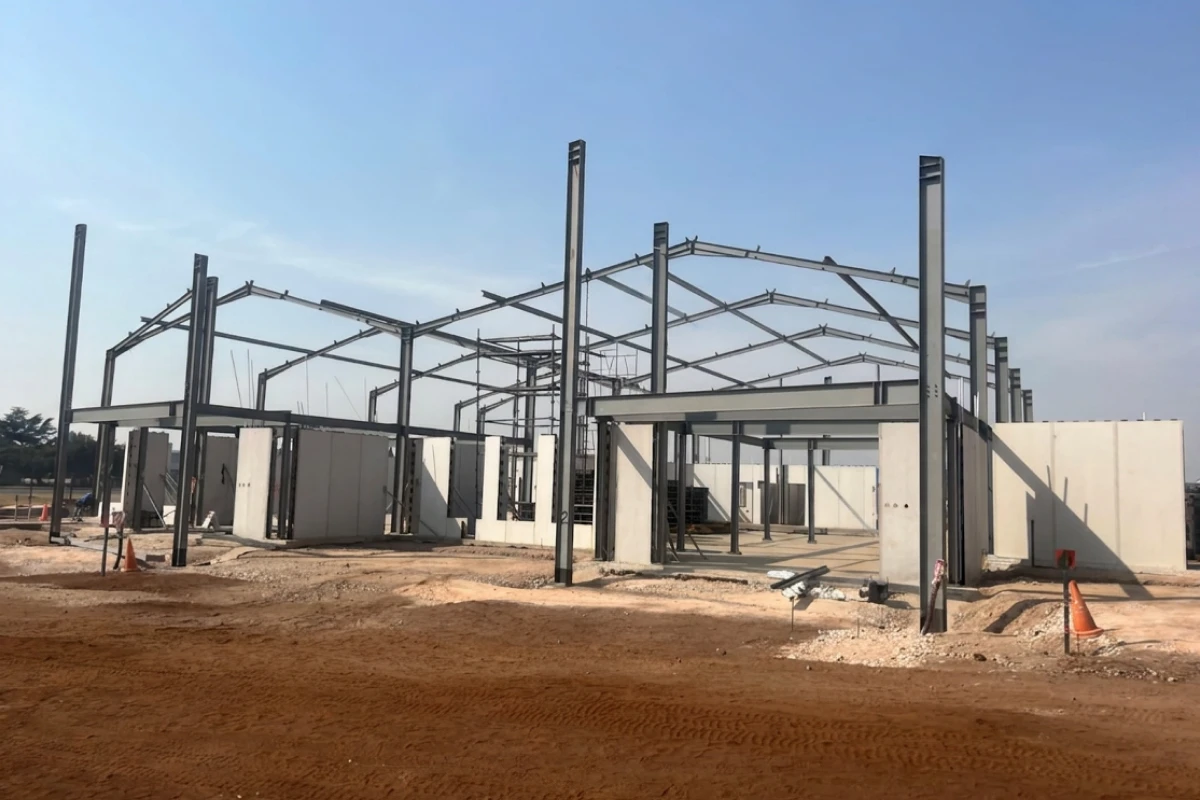

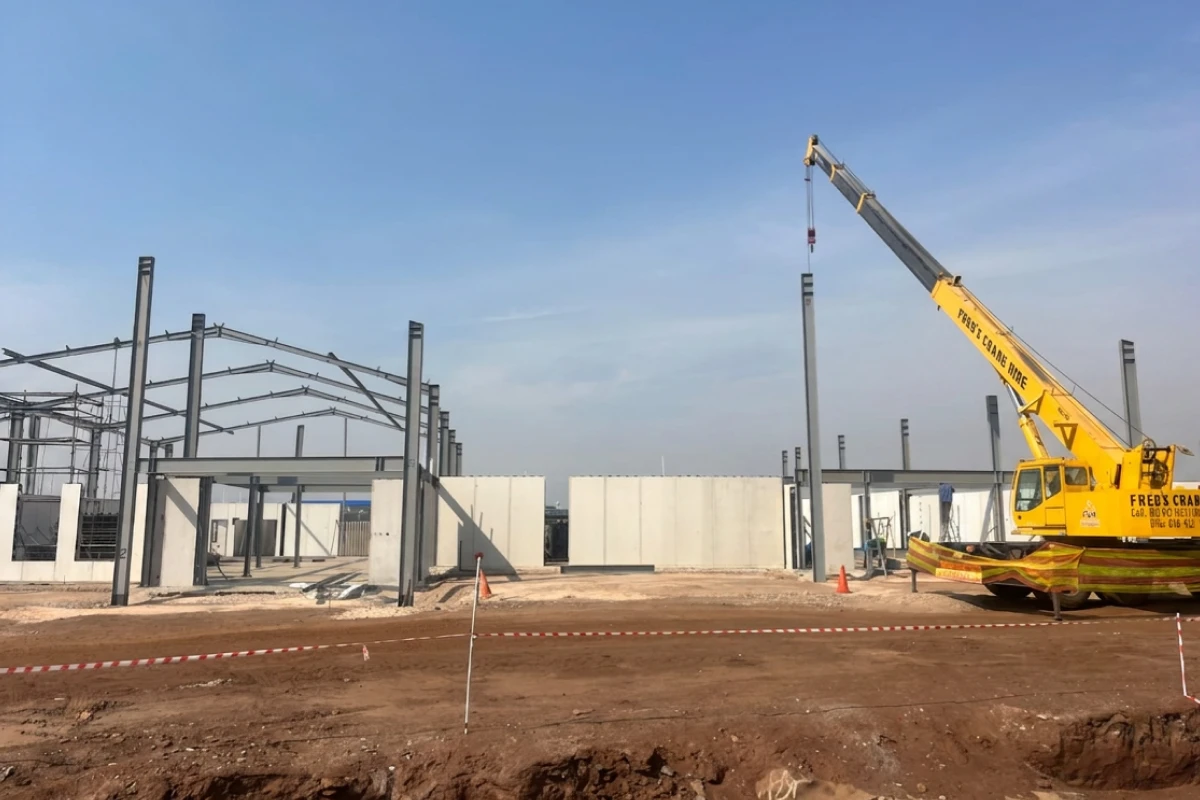

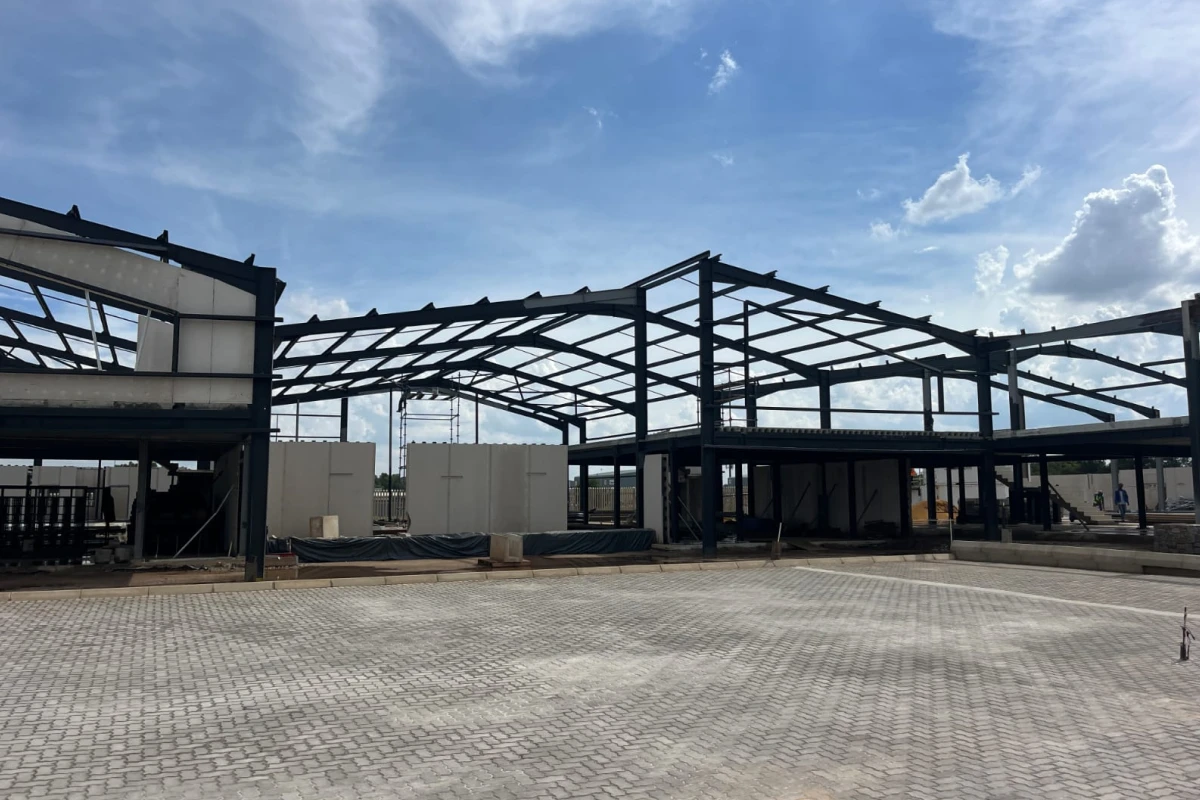

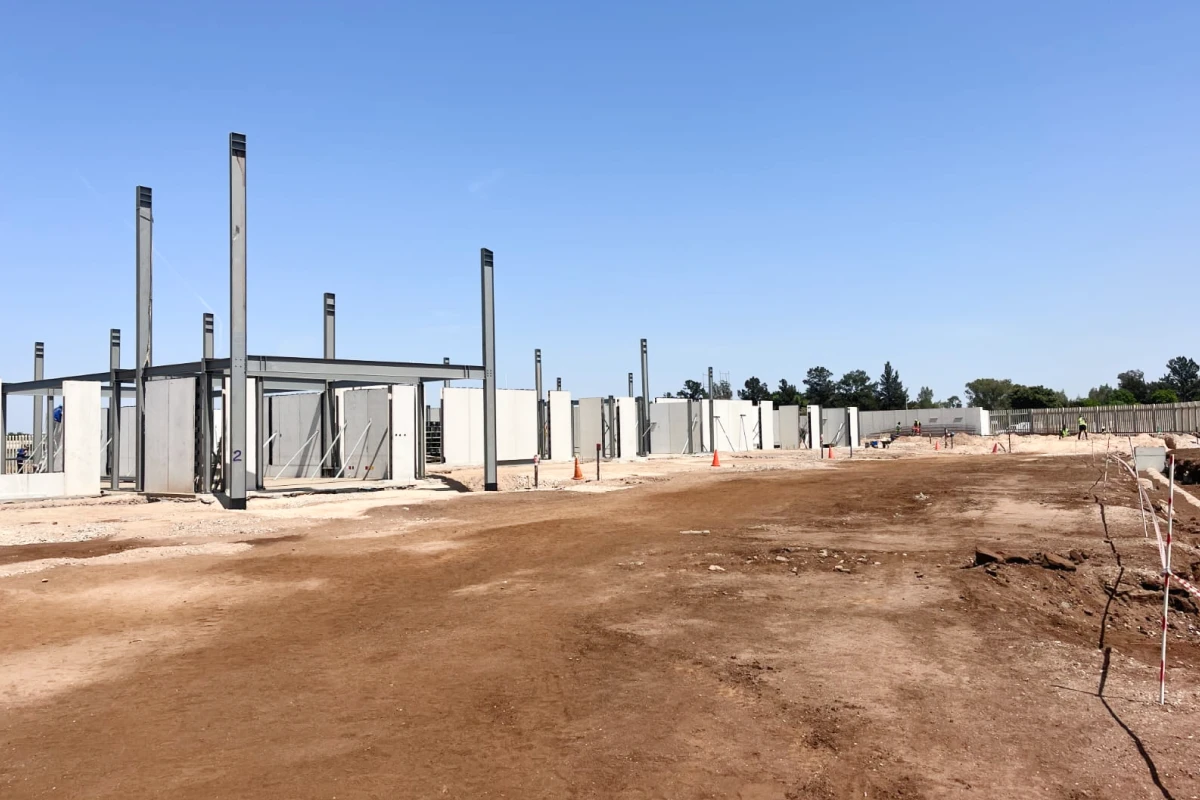

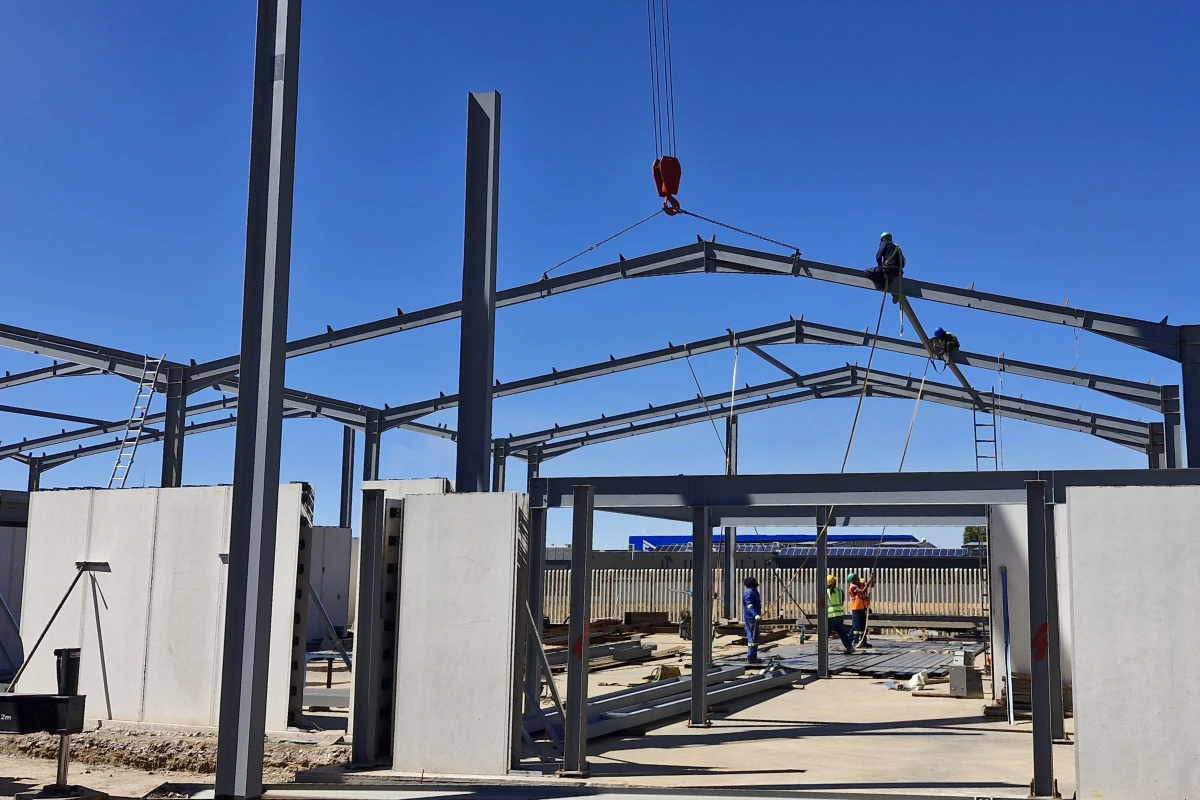

A 25-ton crane was mobilised to site for the erection of all portal frames. Steel was delivered pre-cut and with end plates welded, ready for immediate assembly. The repetitive frame layout – despite some non-uniform bay spacing – allowed for a predictable and efficient erection sequence: units were erected one by one, bolted together, with selected rafters temporarily omitted to allow the crane to position the precast hollow-core slabs onto the steel beams. Once the precast slabs were in position, the remaining rafters and purlins were closed out and roof sheeting commenced. Cladding was installed after the roof was complete, including around windows, corners, and drip flashings. The stepped site levels were accommodated within the steel frame design, avoiding the need for extensive earthworks or deep retaining walls. Bolt-hole alignment precision was a direct output of tight fabrication tolerances and BIM coordination, contributing to a fast and predictable erection programme.

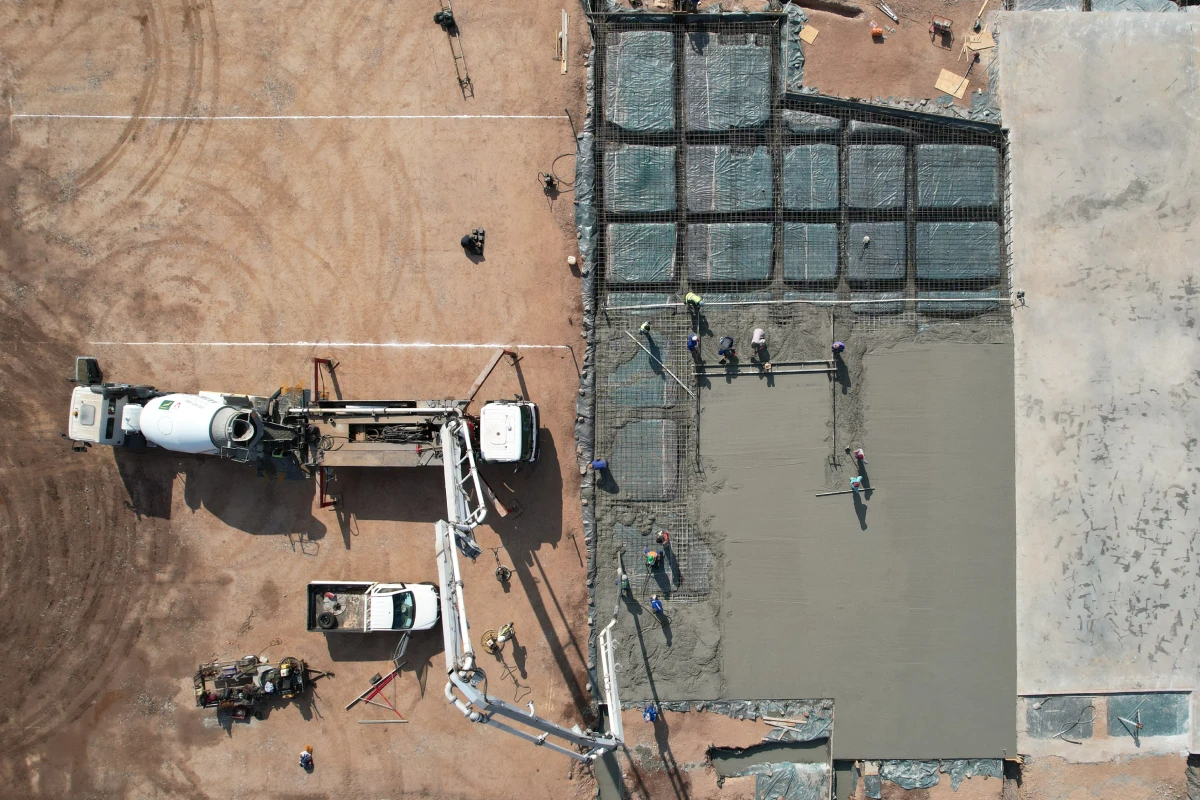

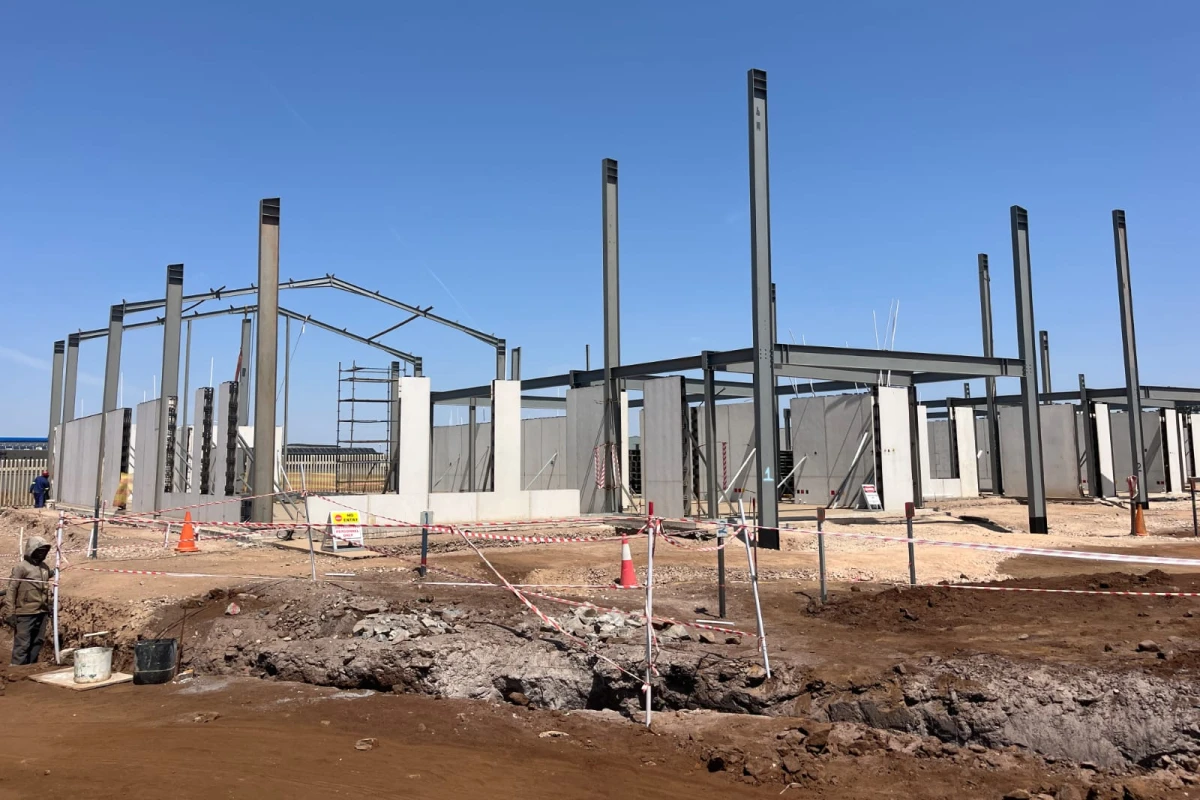

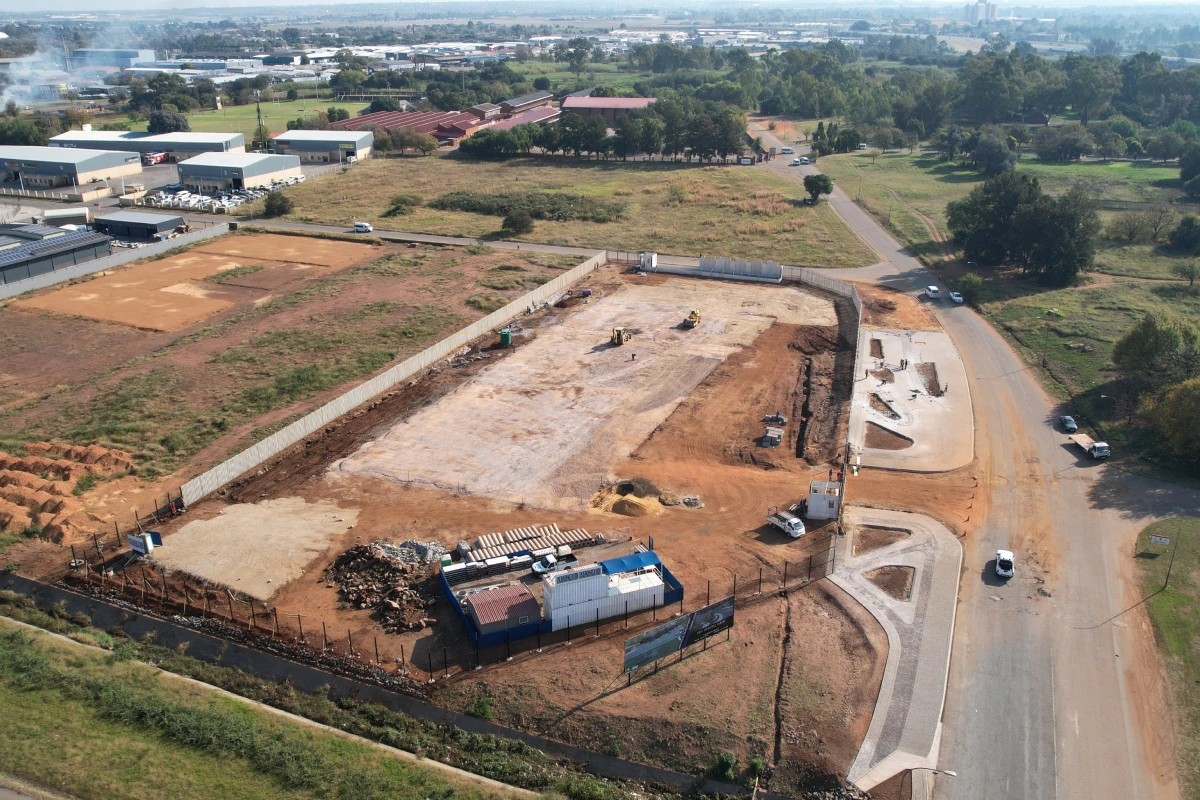

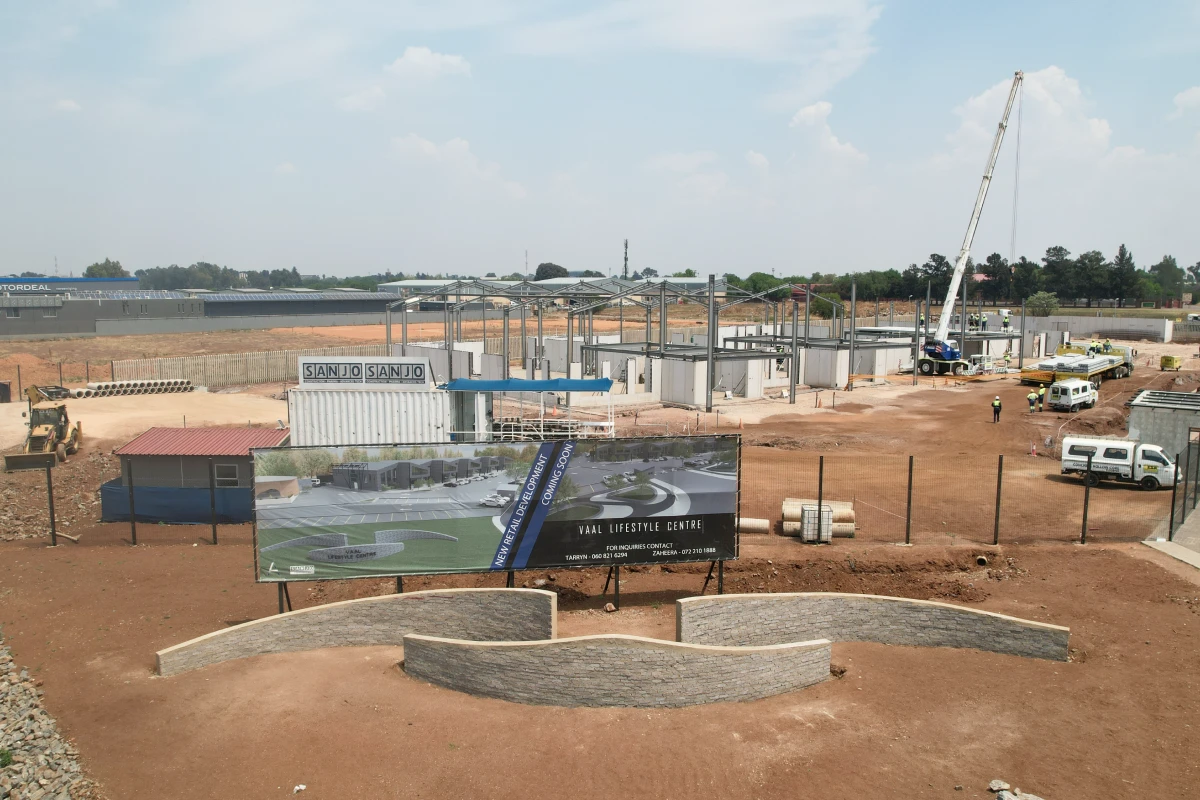

The project faced two primary challenges. The first was the dolomite-classified ground conditions (D4 classification), which included shallow hard rock in portions of the site. A section of the site was identified by the Council for Geosciences as unsuitable for construction. The eastern portions of the site encountered rock that protruded significantly towards the west, resulting in approximately 8 months of rock excavation using chemical drilling (drill, chemical injection, overnight reaction) and air jackhammers to break and remove the material. The foundation design was adapted to use raft foundations to manage excavatability and varying ground levels. The second challenge was the steep topography across the site from east to west. This was resolved by stepping the building levels within the steel frame design, accommodating the varying topography without extensive earthworks, reducing the volume of rock excavated, and improving overall constructability. Both challenges were resolved collaboratively between the structural engineer, geotechnical consultants, architect, and contractor, underpinned by the flexibility that the steel frame system inherently provided.
Benefits of Steel in this Application

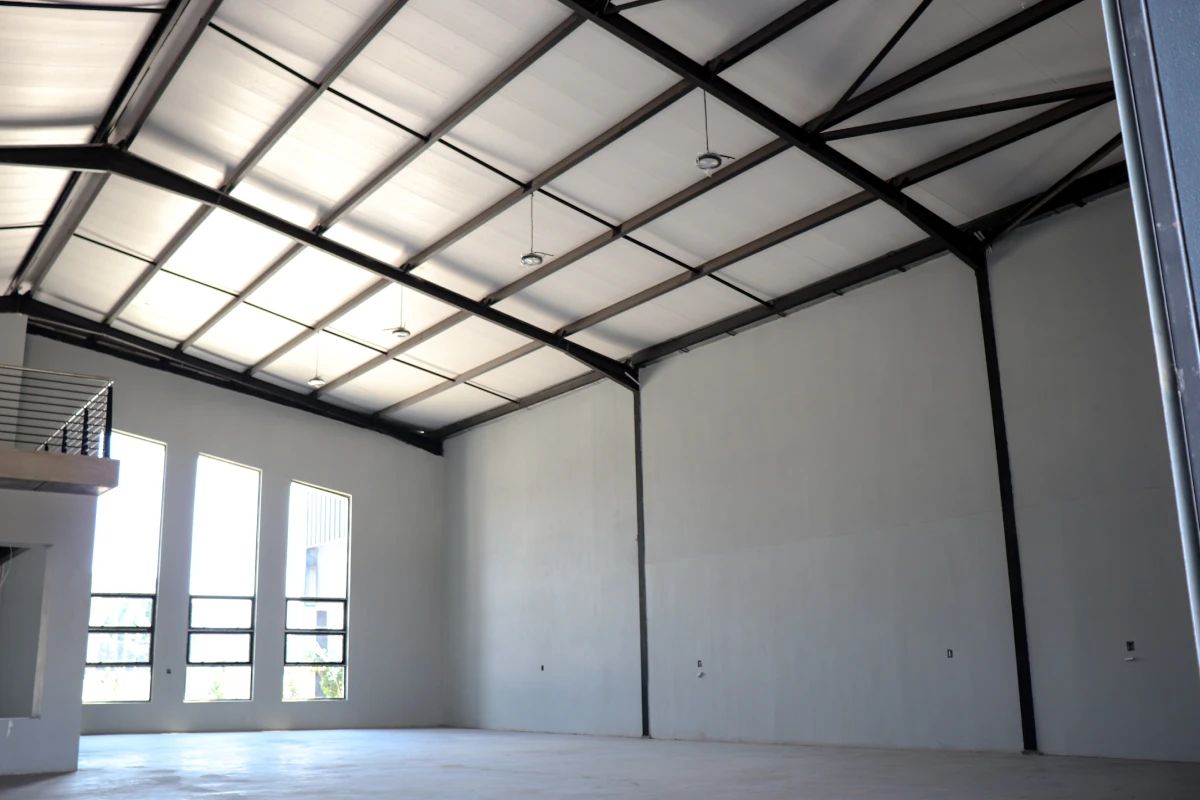

Steel was intentionally selected as the primary structural and architectural material for the Vaal Lifestyle Centre for its unique ability to address the project’s commercial, functional, and contextual objectives simultaneously. The portal frame system enabled large, uninterrupted internal spans, eliminating internal load-bearing walls and providing maximum tenant flexibility for reconfiguration over time. Steel’s superior strength-to-weight ratio minimised structural loads – a critical advantage on dolomite-classified ground where foundation loads needed to be carefully managed. Off-site fabrication ensured high quality control, consistent detailing, and precise bolt-hole alignment, while rapid on-site erection supported an accelerated construction programme. The slender steel members maximised usable floor area while maintaining structural performance. Steel also provided long-term sustainability benefits: every bolted connection can be disassembled, and all sections are fully recyclable at end of life. The use of steel meaningfully connects the project to the industrial and manufacturing heritage of the Vaal region, celebrating its roots while interpreting them in a contemporary architectural language.
Testimonials
“Without getting it right in the model space and countless iterations, it really guided the design across disciplines with coordination and delivered a lighter, multi-bay, multi-level development with reduced foundation loads and direct financial and commercial value.” – Jason, Structural Engineer, A4 Advisory and Consulting.
The project team is proud of transforming challenging dolomitic ground conditions and steep topography into design opportunities that strengthened the final outcome. Steel’s inherent flexibility enabled the team to efficiently respond to changing site conditions, deliver large column-free commercial spaces, and establish a distinctive architectural identity. The fully integrated digital workflow – coordinating architecture, structure, civil works, and MEP in a single federated BIM environment – resolved complex design and construction challenges before breaking ground, enabling a high-quality outcome that is adaptable to future tenant requirements and contributes positively to the urban character and economic growth of the Vaal region.
