Indawo @ The Precinct Lifestyle Hub

  • Date of Steelwork Completion
    2023-03-31

Indawo @ The Precinct Lifestyle Hub

  • Date of Steelwork Completion
    2023-03-31
Project Type
  • Architectural
  • Residential
Project Team Interview Case Study
Project Summary Case Study
Location
Steel Profiles Used
  • Date of Steelwork Completion
    2023-03-31
  • Tonnage
    64
  • Hot Rolled Structural Sections
    Universal Beams (I Sections), Universal Columns (H Sections), Equal Angles
  • Cold Formed Structural Sections
    Lipped Channels
  • Tubes and Pipes
    Structural Tubes & Hollow Sections - Square
Metal Cladding and Roofing Overview
  • Date of Cladding Completion
    2023-05-26
  • Material Used
    Zincal® AZ 150, Grade G275 (Safal Steel)
  • Cladding Area Coverage (m2)
    1280
Project Overview

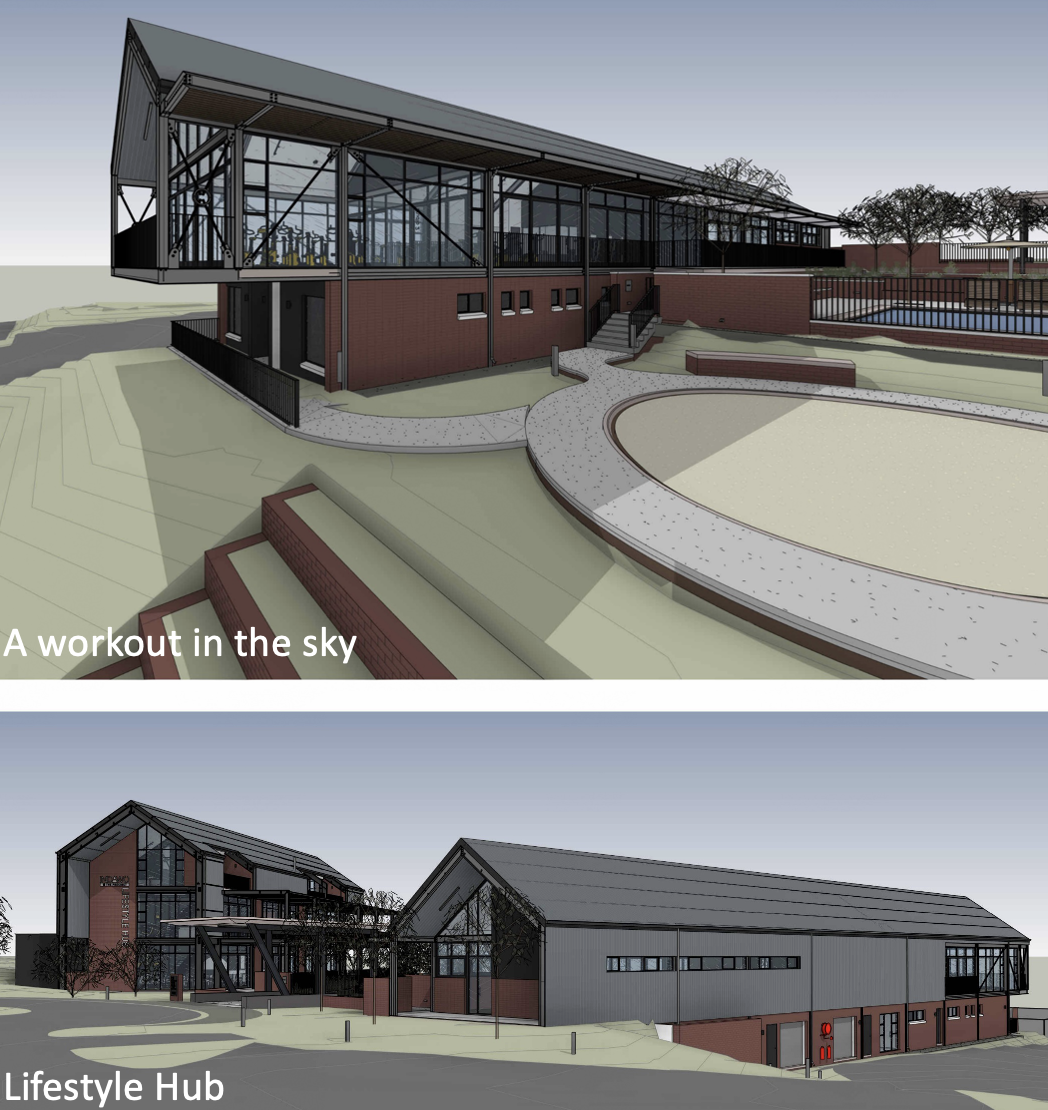

The Indawo @The Precinct Lifestyle Hub, nestled within the community of The Precinct residential development, is a visionary project designed to enrich the lives of tenants by providing an exceptional array of recreational spaces. Comprising two distinct buildings interconnected by an inviting pool and lush grassed terrace, the hub promises an oasis of relaxation and activity.

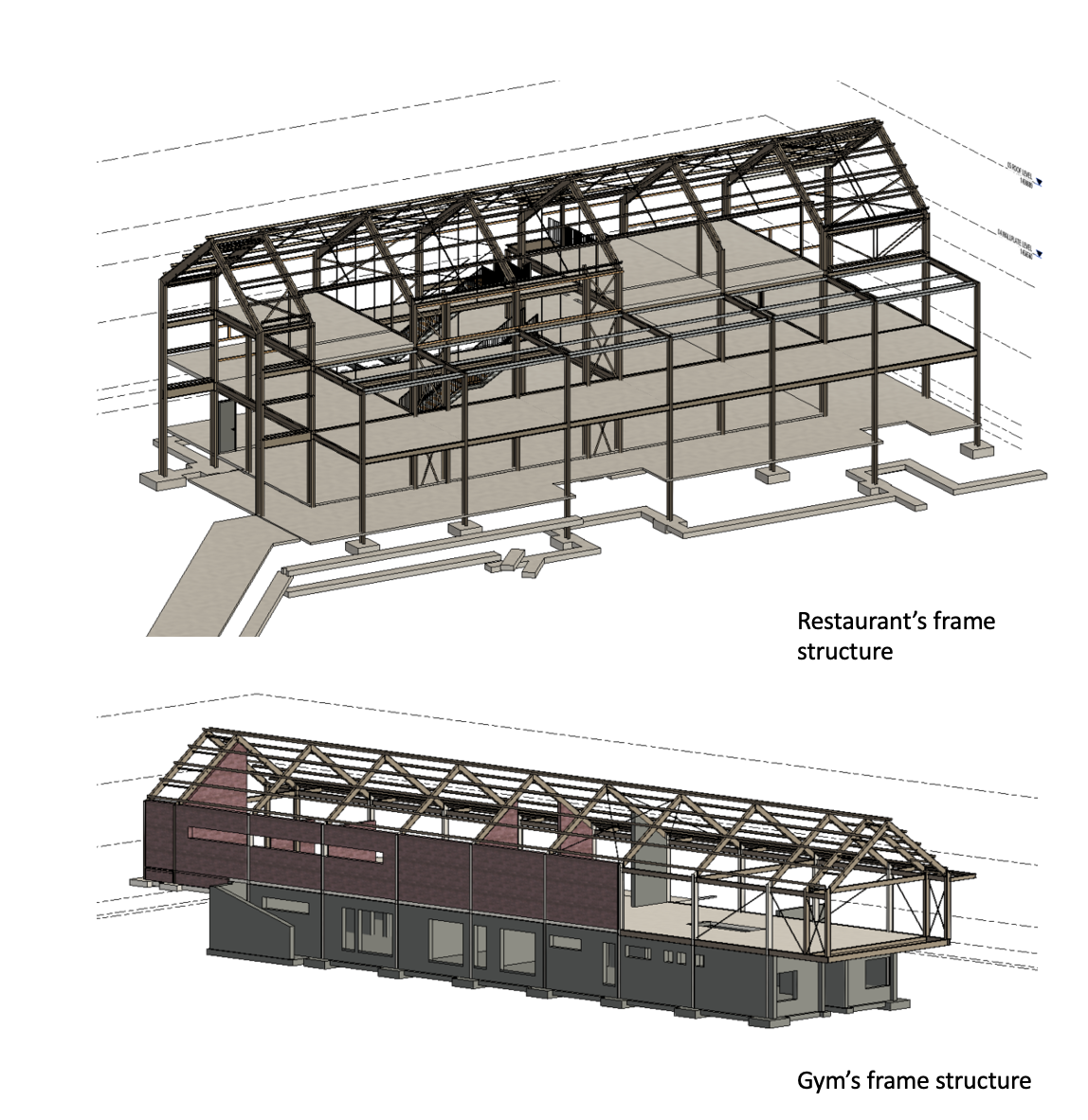

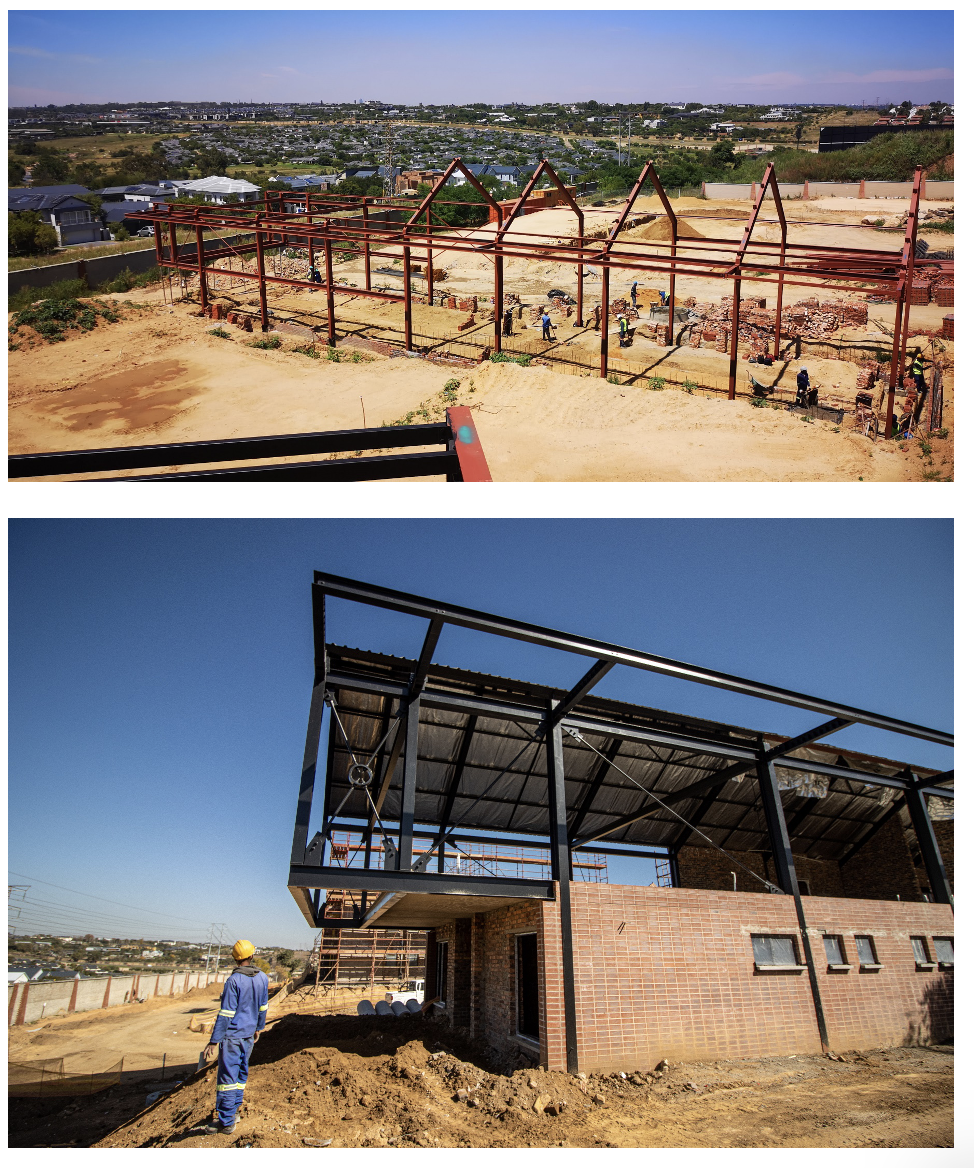

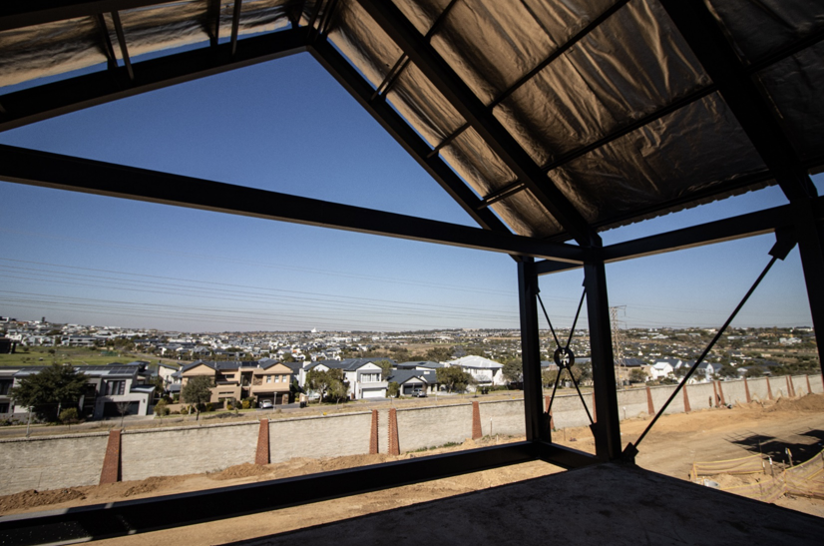

The design of the Lifestyle Hub harmoniously blends aesthetics and functionality, enhancing the overall living experience. The utilization of steel portal frames, roof and wall sheeting, precast concrete, glazing elements, and facebrick exemplifies the commitment to the Century Property aesthetic that defines the development. This attention to detail not only preserves the development's cohesive visual identity but also imbues the hub with an air of modern elegance.

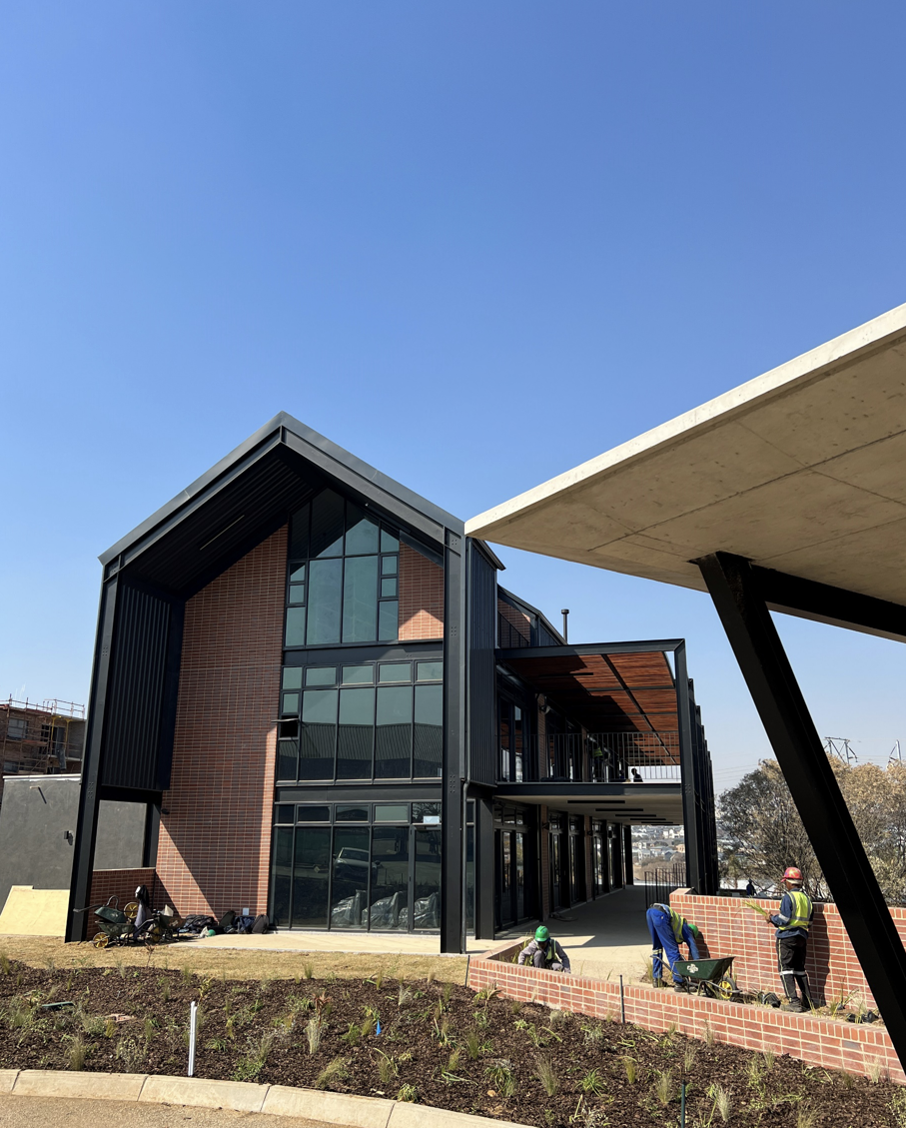

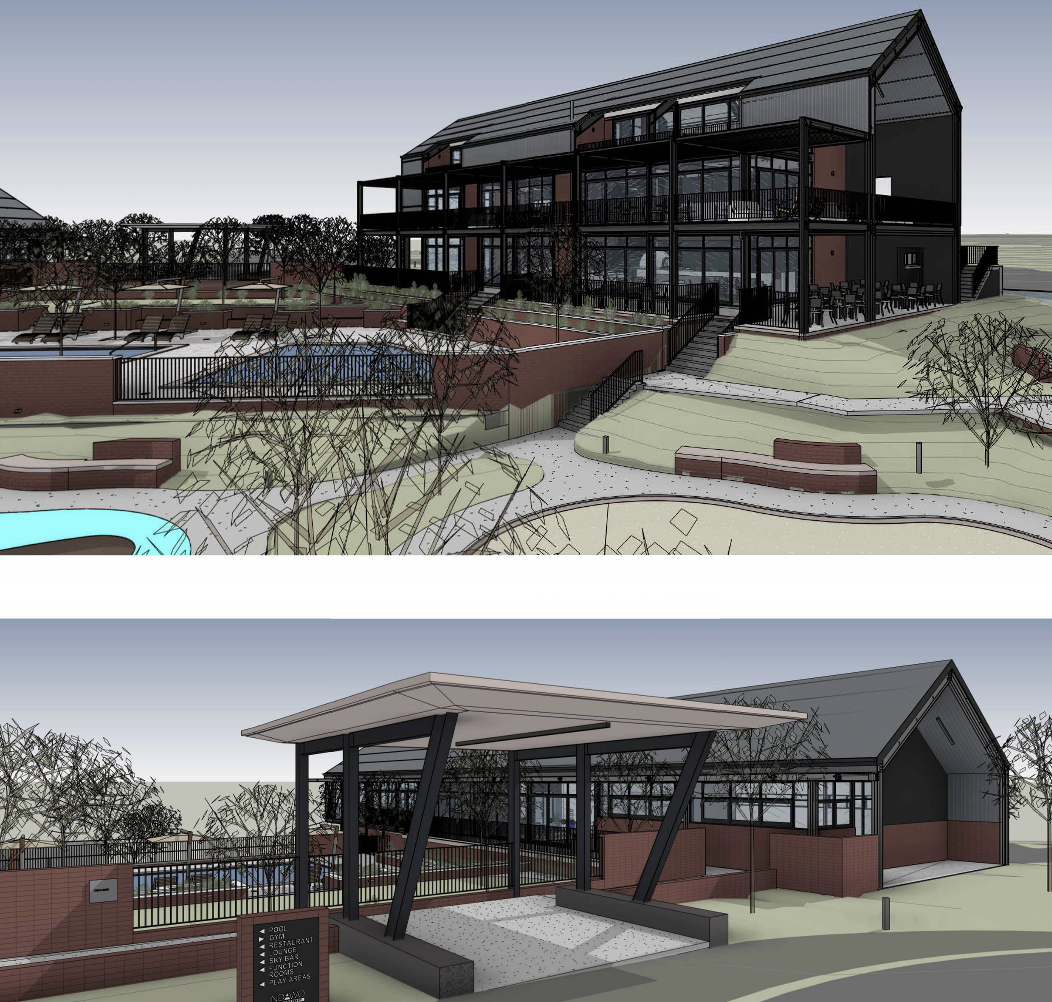

A signature steel and concrete entrance canopy stands as a testament to the hub's significance within The Precinct. Designed to be both functio

Project Details

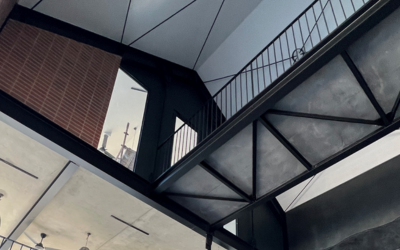

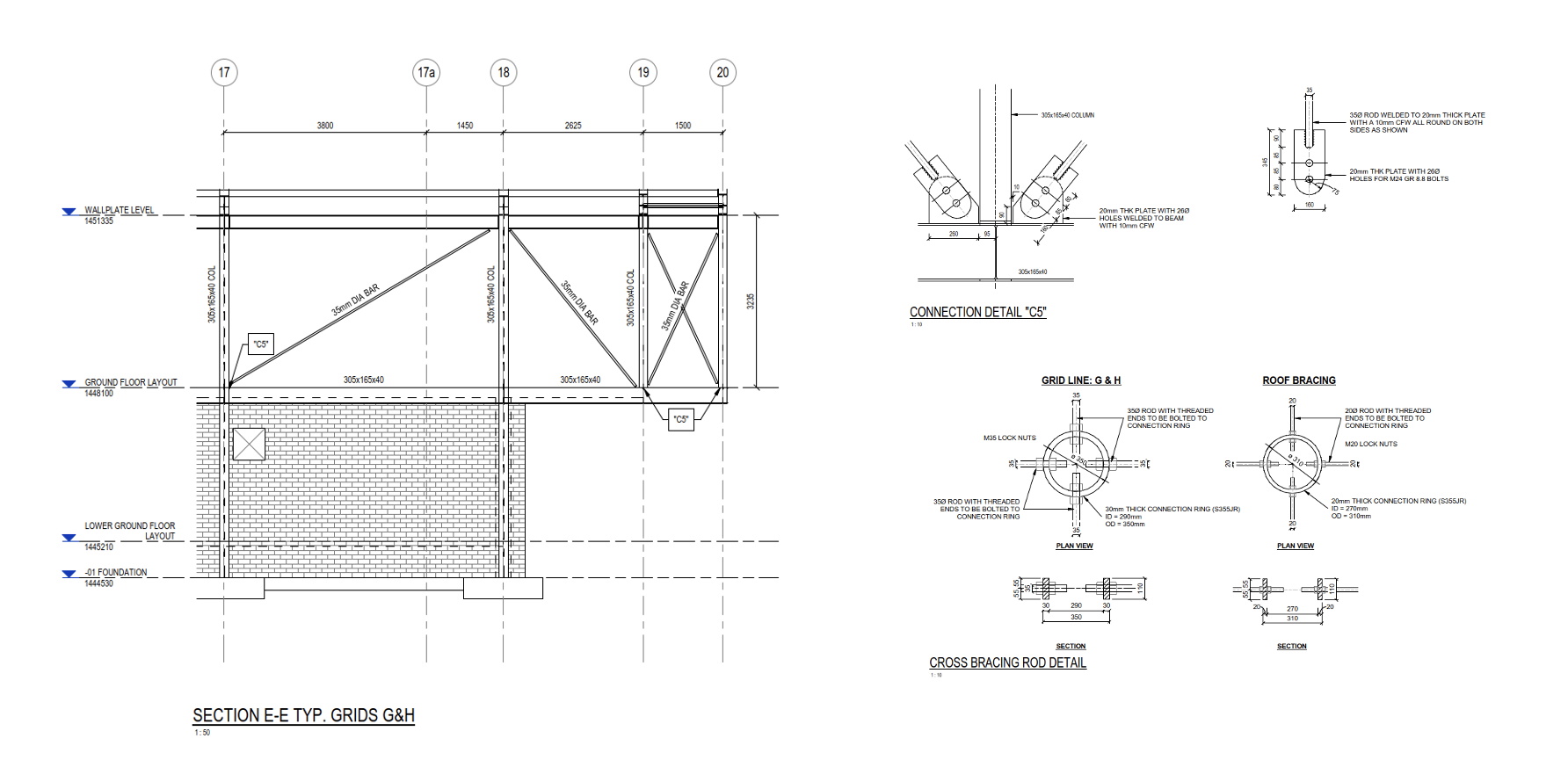

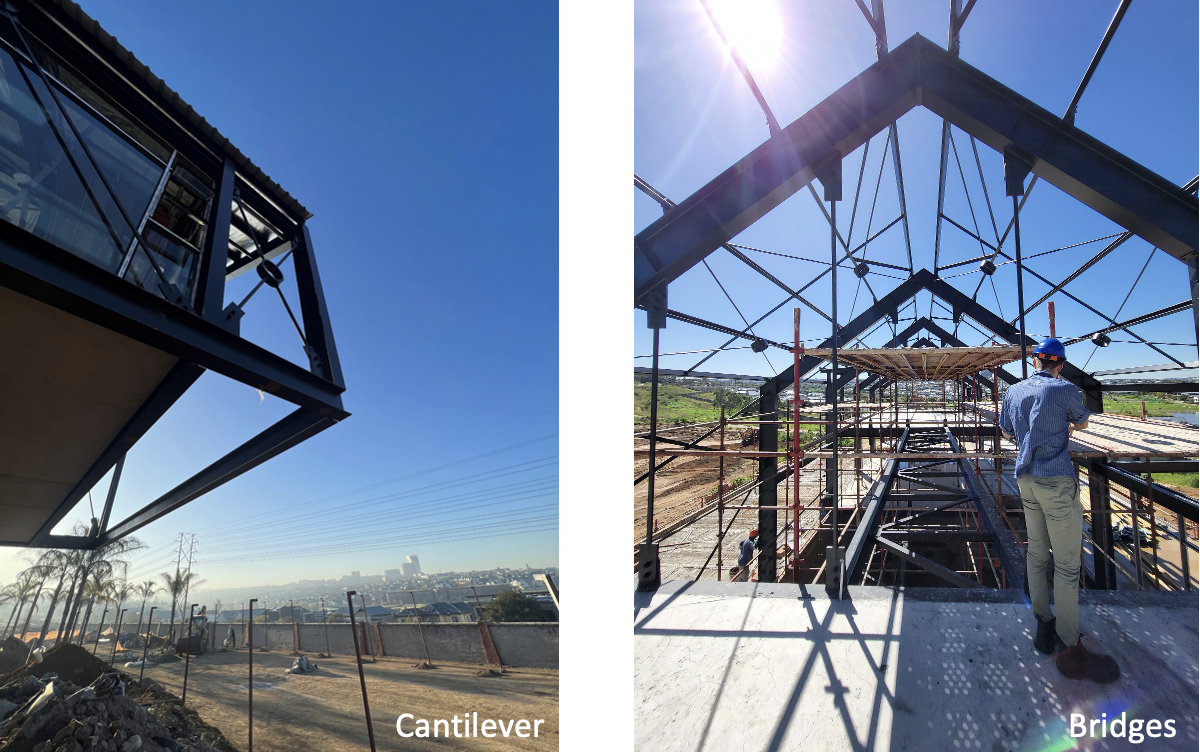

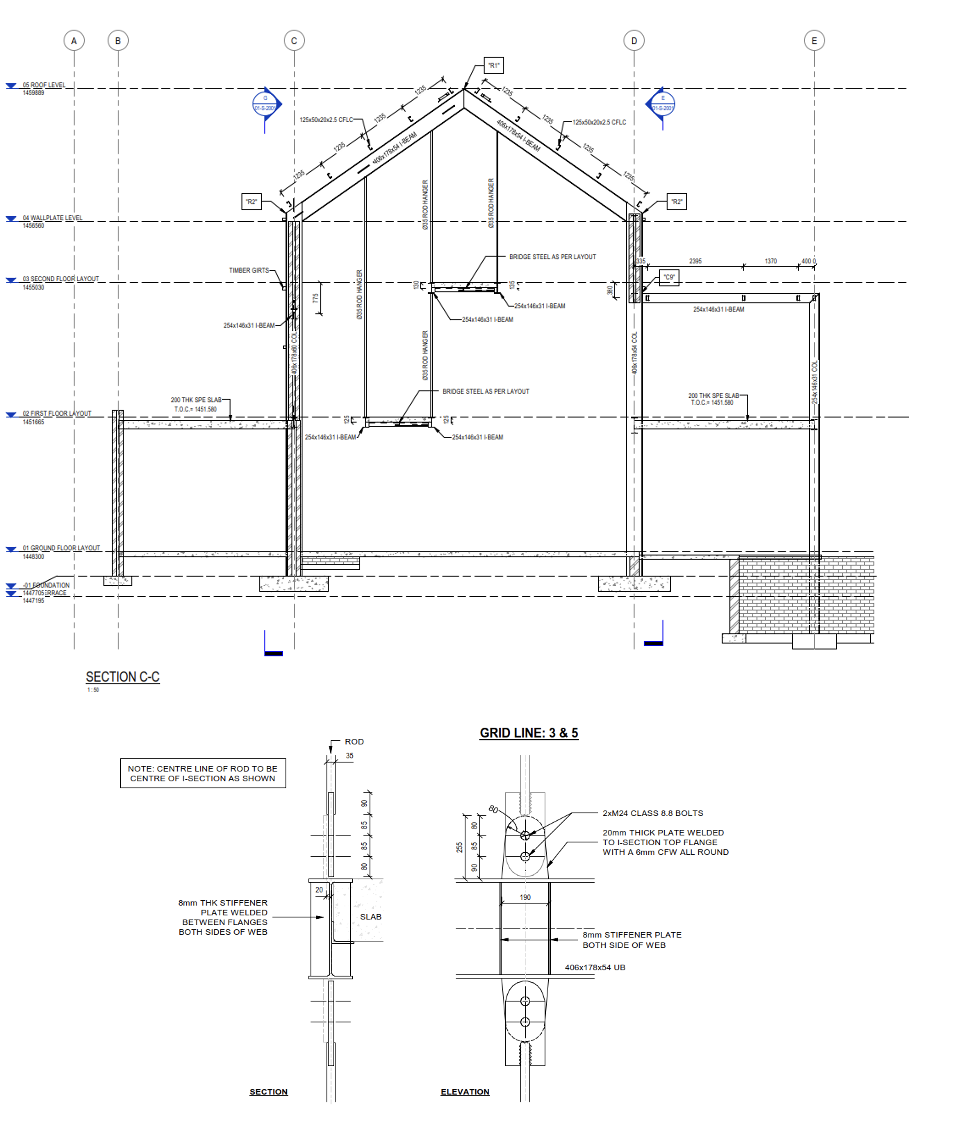

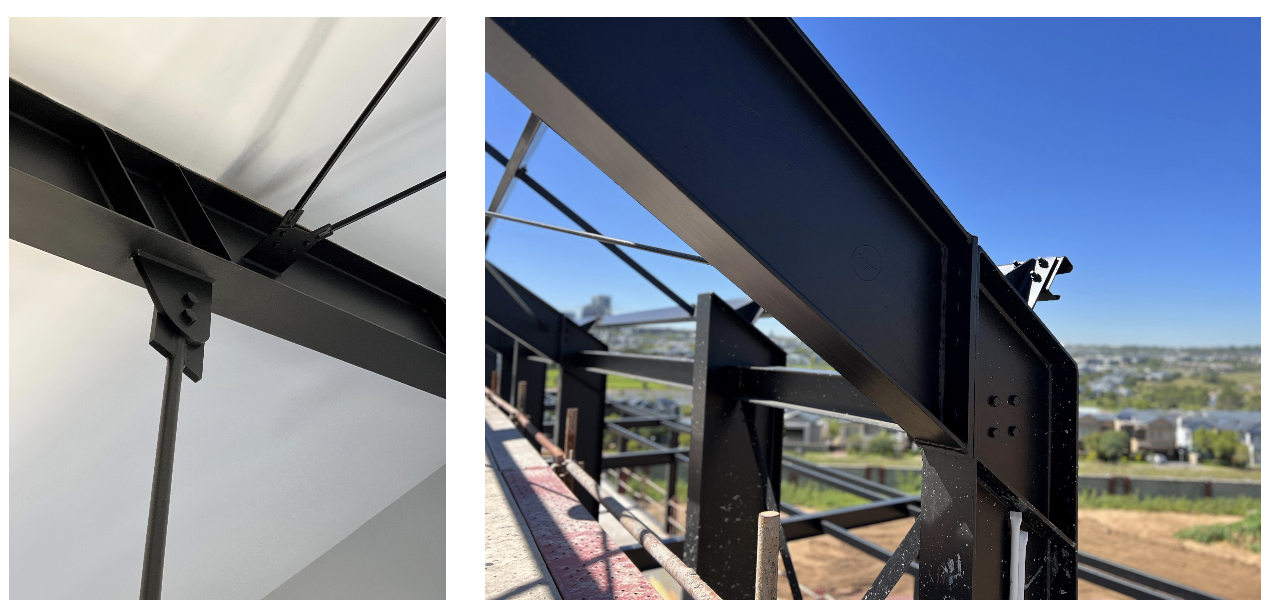

Slab construction sequence – With the pre-slab installation sequencing of steel erection and slab packing had to be considered Cantilever gym – Balancing the structural requirements with the remainder of the structure’s member size Suspended bridges – Asymmetric loading and tension elements Second floor balconies – Creating the threshold while maintaining the composite actionDownpipe integration – To keep the downpipes on the column line the steel beams were cut and connection with an SHS section. The beam was strengthened with platework
Benefits of Steel in this Application

Structural Integrity: Steel offers exceptional strength and load-bearing capacity, allowing for creative and daring architectural designs.
Durability: Steel is resistant to corrosion, weathering, and pests, ensuring the building's longevity and reduced maintenance costs.
Flexibility: Steel's malleability facilitates intricate designs, enabling architects to experiment with complex shapes and forms.
Sustainability: Steel is recyclable, promoting eco-friendly construction practices and reducing the building's environmental footprint.
Fast Construction: Prefabricated steel components speed up the construction process, minimizing project timelines.
Fire Resistance: Steel's non-combustible properties enhance the building's safety and compliance with fire codes.
Durability: Safintra Widedek is resistant to weathering, corrosion, and pests, leading to a longer lifespan compared to some other materials. Low Maintenance: Safintra Widedek requires minimal maintenance, often just periodic cleaning to maintain its appearance. Energy Efficiency Safintra Widedek can contribute to a building's energy efficiency by providing thermal insulation and reflecting sunlight. Design Flexibility: Safintra Widedek offers a wide range of colors
Fire Resistance: Safintra Widedek offers excellent fire resistance.

Testimonials

Quote from the Project Team
"We take great pride in Indawo @The Precinct Lifestyle Hub, a testament to cutting-edge engineering and design. The use of steel as the primary building material has not only ensured exceptional durability & structural integrity but has also granted us freedom to create expansive volumes within this building.

The versatility of steel allowed us to design soaring ceilings that foster a sense of grandeur. This achievement stands as a celebration of human ingenuity and showcases the remarkable possibilities that arise when technology and creativity converge in the realm of construction."
